AXIS P1264 Network Camera
Cost-effective, extremely discreet pinhole camera
- Pinhole lens for extremely discreet surveillance
- HDTV 720p and 57º horizontal field of view
- Axis’ Zipstream technology
- Built-in microSD card slot
- Power over Ethernet
Extremely discreet installation
AXIS P1264 Network Camera is a cost-effective and extremely discreet pinhole camera with HDTV 720p performance. Comprising a sensor unit and a main unit, the indoor camera is ideal for use in stores, ATMs, and ticket, vending and health monitoring machines.

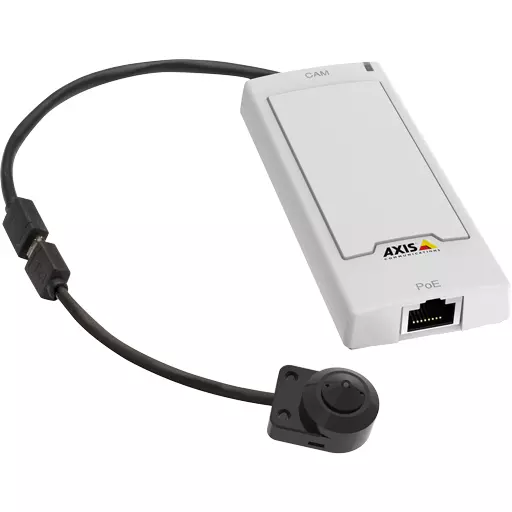

Modular concept

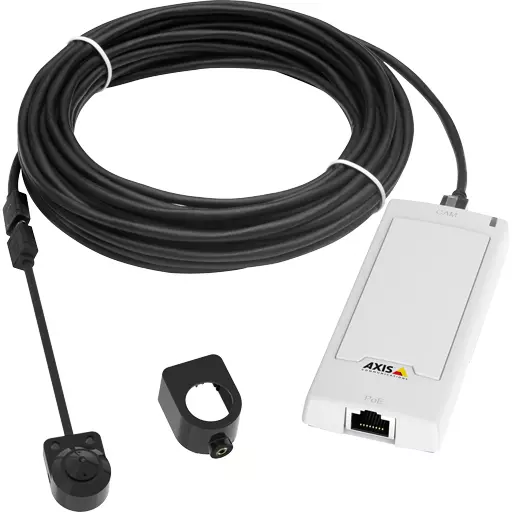

AXIS P1264 is composed of the following: an AXIS F1004 Pinhole Sensor Unit, comprising a lens and image sensor, and AXIS P12 Mk II Main Unit, which is the body of the camera. The camera comes with a detachable 8-m (26 ft) cable for connecting the sensor unit to the main unit. The cable enables the main unit to be placed away from the viewing point where there is space.

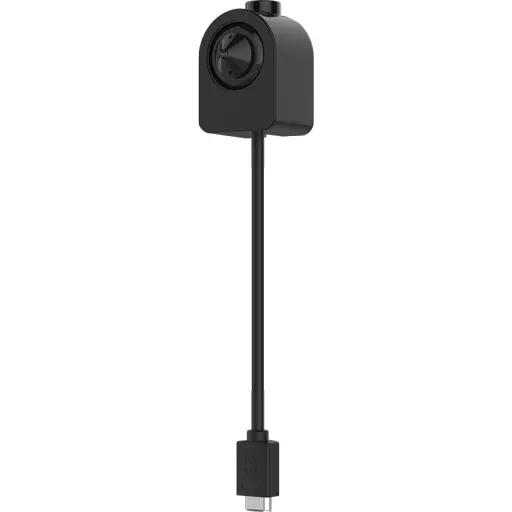

Pinhole sensor unit
The sensor unit can be mounted in tight places, and behind a metal, plastic or glass panel that is up to 5.2 mm (3/16 in.) thick when used with the included mounting bracket. The sensor unit provides a 57° horizontal field of view and color video in light as low as 0.5 lux.
Compact main unit
The main unit, with dimensions of 1.7 x 4.6 x 11 cm (5/8 x 1 13/16 x 4 5/16 in.) makes it easy to install in tight places. It provides HDTV 720p video and is powered through Power over Ethernet (PoE). It has a built-in microSD card slot for local storage of recordings.
Savings with Axis’ Zipstream technology
AXIS P1264 supports Axis’ Zipstream technology, which is a more efficient implementation of the H.264 video encoder. It can lower bandwidth and storage use by an average of 50% or more for many surveillance scenarios. The encoding technology ensures that important details are maintained while unnecessary data is heavily compressed.
Video analytics
AXIS P1264 supports AXIS Video Motion Detection 3, Active Tampering Alarm and AXIS Camera Application Platform for installation of additional video analytics.
