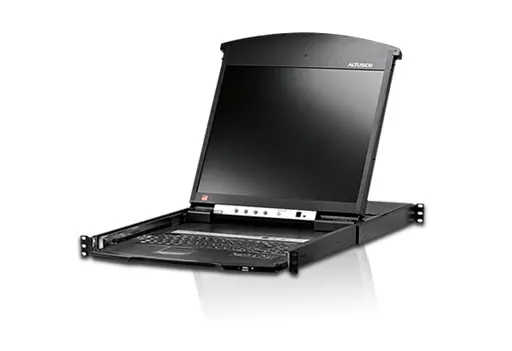

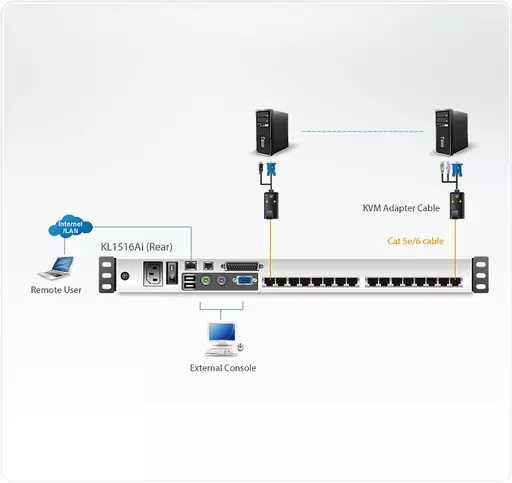

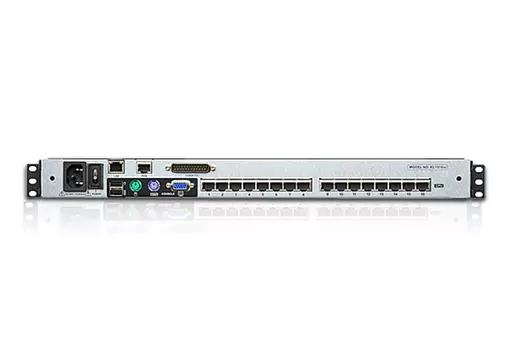

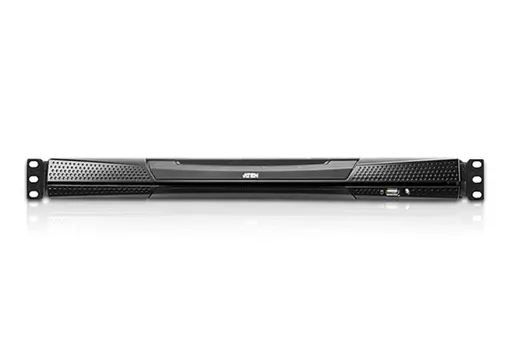

Hardware - Integrated KVM console with 17¨ or 19¨ LCD monitor in a Dual Rail housing - A single console controls up to 16 computers - Daisy chain up to 15 additional KVM switches to control up to 256 computers* - One bus for remote KVM over IP access - Space-saving RJ-45 connectors and Cat 5e/6 cabling - KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types - Extra console por – manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse) - Multiplatform support: PC, Mac, Sun and Serial - Supports external USB mouse - Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space - Dual Rail – LCD monitor slides independently of the keyboard/touchpad - LCD module rotates up to 120 degrees for a more comfortable viewing angle - Console lock – enables the console drawer to remain securely locked away in position when not in use - LCD power button helps save energy and prolong displays´ life Management - Up to 64 user accounts – up to 32 concurrent remote logins - End session feature – administrators can terminate any running session - Adapter ID – stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch - Port Share Mode allows multiple users to gain access to a server simultaneously - Remote power control for attached Power Over the NET™ devices - Integration with ALTUSEN CC2000 Management software - Event logging and Windows-based Log Server support - Local Log Event - Firmware upgradeable - IPv6 capable Easy-to-Use Interface - Easy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and Browser-based GUI - Local Console, Browser, and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity - Multiplatform client support (Windows, Mac OS X, Linux, Sun) - Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape - Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed - Panel Array Mode™ - Keyboard broadcast* – keyboard input can be duplicated on all the attached servers Advanced Security - Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory - 128-bit SSL encryption to protect password when users log in - Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video data encryption - IP/MAC Filter support for enhanced security protection - Configurable user and group permissions for server access and control Virtual Remote Desktop - Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations - Full-screen or sizable and scalable Virtual Remote Desktop - Message board feature allows logged in users to communicate with each other - Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements - On-screen keyboard with multi language support - BIOS-level access Package Contents - 1x KL1516Ai Dual Rail LCD KVM Switch - 1x 1ADP-0005-005G Power Cord - 1x Standard Rack Mount Kit - 1x Firmware Upgrade Cable - 1x User Instructions
