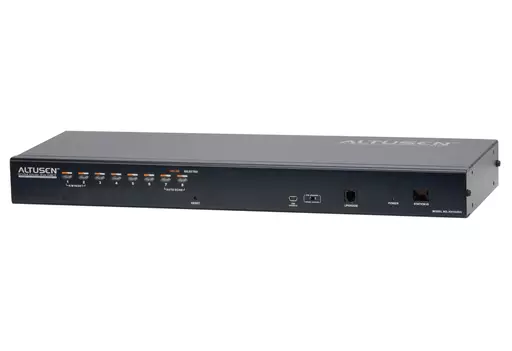

Features Hardware - High port density – RJ-45 connectors for up to 8 ports in a 1U housing - A dedicated USB port directly connects to a laptop for easy Console operation - One bus for remote KVM over IP access - Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity - Local console provides PS/2 and USB keyboard and mouse support - Multiplatform support - Windows, Mac, Sun and Linux - Superior Video Quality - up to 1600 x 1200 @ 60Hz at up to 40 meters and 1280 x 1024 @ 75Hz at up to 50 meters* - Daisy-chain up to 15 additional units – control up to 128 computers from a single console * With KVM Adapter Cable KA7000 series. Management - Up to 64 user accounts – up to 32 users simultaneously share the control - End session feature – administrators can terminate running sessions - Event logging and Windows-based Log Server support - Local Log Event - Adapter ID – stores port information allowing administrators to relocate the servers to different ports, without having to reconfigure the adapters and switch - Port Share Mode allows multiple users to gain access to a server simultaneously - Integration with ALTUSEN CC2000 Management software - Power Over the NET™ integration for remote power control - Firmware upgradeable - IPv6 capable Ease-to-Use Interface - Local Console, Browser, and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity - Multiplatform client support (Windows, Mac OS X, Linux, Sun) - Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape) - Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed - Panel Array Mode#8482; - Keyboard broadcast – keyboard input can be duplicated on all the attached servers Advanced Security - Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory - 128-bit SSL encryption to protect password when users log in - Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video, data encryption - IP/MAC Filter for enhanced security protection - Configurable user and group permissions for server access and control Virtual Remote Desktop - Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations - Full screen or scalable video display - Message Board for communication among remote users - Mouse DynaSync™ - automatically synchronizes the local and remote mouse movements - On-screen keyboard with multilanguage support - Exit Macros support - BIOS-level access Package Contents - 1x KH1508Ai Cat 5 High-Density KVM Over the NET™ Switch - 1x Firmware Upgrade Cable - 1x Laptop USB Console Cable - 1x 0AD8-0C05-34EG Power Cord - 1x Rack Mount Kit - 1x Foot Pad Set (4 pcs.) - 1x User Instructions
