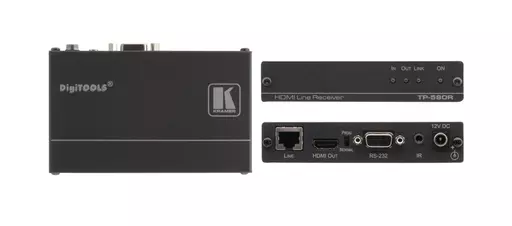

The TP−580R is a high−performance, HDBaseT twisted pair receiver for HDMI, bidirectional RS−232 and IR signals. The TP−580R receives an HDBaseT twisted pair signal from the TP−580T and converts it back into HDMI, RS−232 and IR signals. - Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel). - HDTV Compatible. - HDCP Compliance. - HDBaseT™ Technology. - HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, CEC. - 3D Pass-Through. - EDID PassThru - Passes EDID signals between the source and display. - 2K & 4K Support. - Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS−232 interface, allowing status requests and remote control of the destination unit. - System Range - Up to 70m (230ft). - Cable - For optimum range and performance using HDBaseT™, use Kramer's BC−HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non−Kramer CAT 6 cable may not reach these ranges. - Indicators - Status LEDs for input, output, link and power. - Compact DigiTOOLS® - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T universal rack adapter.
